If = 0.5A
Vp = 180V
Vg = -19.0V
Vsg = 180V
Isg = 4.8mA
Ip = 20.0mA
Rp = 45k ohm
gm = 2000
μ = 90
RL = 7k ohm
Po = 1.4W
電力増幅直熱5極管
|

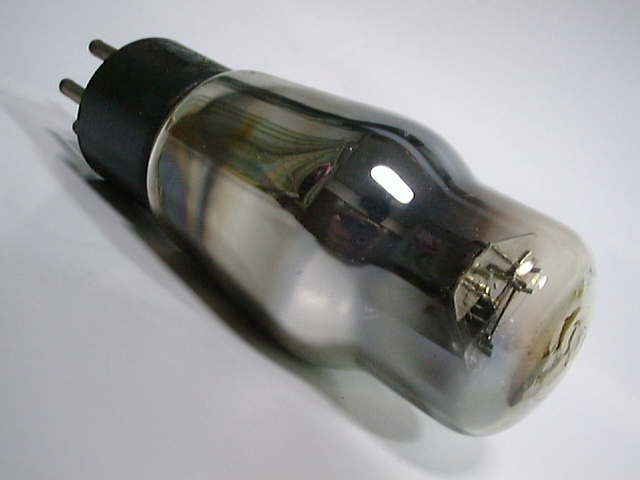

UY-47B | Ef = 2.5V If = 0.5A Vp = 180V Vg = -19.0V Vsg = 180V Isg = 4.8mA Ip = 20.0mA Rp = 45k ohm gm = 2000 μ = 90 RL = 7k ohm Po = 1.4W |
